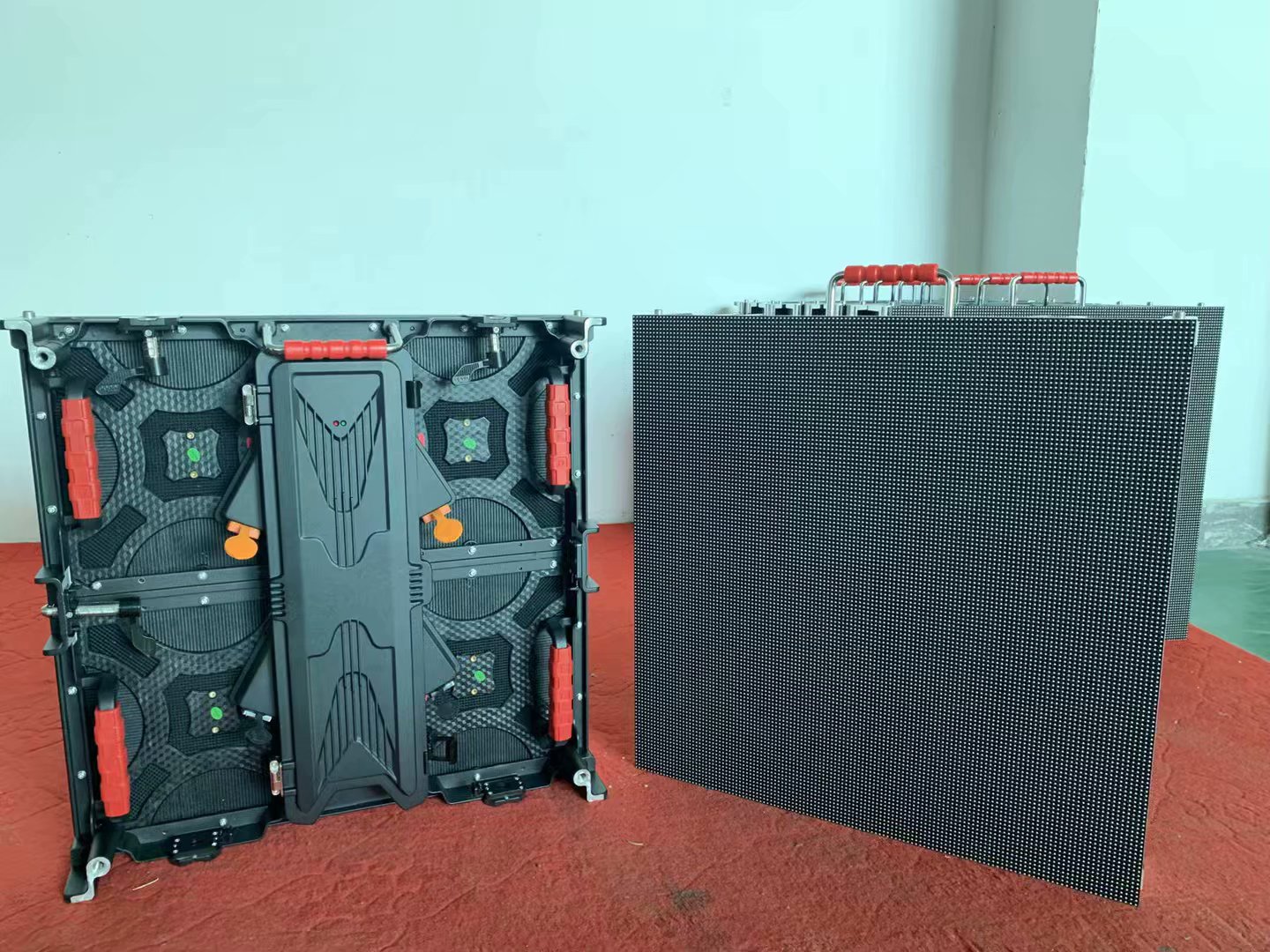

P3.91 outdoor hanging standing led screen outside led stage backdrop display for live broadcast
Product Description:
1. 3840Hz High refresh rate, show a perfect display effect,and there will be no ripple when you take a photo or record video.
2. No need to disassemble the whole screen for maintenance. Each components can be detached individually for that purpose.
3. The Die casting aluminum cabinet makes the single cabinet as light ONLY 7KG.
4. Specially designed masks can make the horizontal viewing angle up to 140 degrees.
5. The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
6. Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, it means to save 35% money.
| Technical Parameter for P3.91 OUTDOOR RENTAL LED DISPLAY |
| Module Specifications |
| 1 | Pixel Pitch | 3.91mm | |
| 2 | Led Type | SMD2121 |
| 3 | Pixel configuration | 1R1G1B |
| 4 | Module Size | 250x250mm |
| 5 | Module Resolution | 64x64pixels |
| 6 | LED Chip | Epistar |
| 7 | LED brand | Hongsheng/Forest/ Kinglight/Nationstar |
| Cabinet Specification |
| 1 | Cabinet Size | 500x500mm |
| 2 | Cabinet Resolution | 128x128 pixels |
| 3 | Module Qty. | 2x2pcs |
| 4 | Power Supply | 5V40A 200W/ 5V60A 300W |
| 6 | Cabinet Materials | die casting aluminum |
| 7 | Power flight socket | 1set |
| 8 | Signal flight socket | 1 set |
| Screen Parameters |
| 1 | Pixel density | 65536dots/㎡ |
| 2 | Screen Resolution | according to screen size |
| 3 | Cabinet Qty. | according to screen size |
| 4 | Brightness | ≥5000 CD/sqm |
| 5 | Refresh rate | ≥1920Hz/s |
| 6 | Scanning Mode | 1/16 scan |
| 7 | Viewing Angle | H:140°;V:140° |
| 8 | Viewing Distance | ≥4m |
| 9 | Gray Level | 16 Bit |
| 10 | Power Input | AC110~240V |
| 11 | Power Comsuption | Max: 700W/㎡ Average:240W/㎡ |
| 12 | MTBF--hours | >10,000 hours |
| 13 | Life--hours | ≥100,000 hours |
| 14 | IP Grade | IP65 |
| 15 | Operating Temperature | -35℃~ 65℃ |
| 16 | Storage Humidity | 10℃~90℃RH |
| 17 | Control Syetem | Colorlight/Nova/Linsn |
| 18 | Operating System | Windows98/me/2000 /NT/XP |
| 19 | Power Supply | 5V40A 200W/5V60A 300W |
| 20 | Maintance Access | Back service/Front service |
| 21 | video processor | Colorlight/Novastar/Linsn/VDWALL/RGBLINK |
| 22 | Control mode | computer /USB/WIFI/4G |
HS code: 8528591090
Regular flight case package(plywood also available,price will be cheaper)
FAQ
Q1: What's the warranty of your LED Display Screen ?
A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps.
Q2: What about your pre-sale service and post-sale service?
A2: For pre-sale service: We have a professional sales team and a 12 years technical team who are willing to answer your question 24/12. We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.
Also, we can send engineers to your country to solve problems. Mostly, our led display will not have big problems within warranty time!
Q3: Whats your payment term? How long it takes to delivery?
A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days after receiving the deposit.
Q4: What's the control system?
A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.
For asynchronous control: We use Onbon, or Xixun control system.
Q5: How can you ensure the led display product quality?
A5: We have 48 hours aging test and 72 hours whole screen consistency test to ensure the quality.
If any quality failures within warranty time, we will refund you on alibaba.
Application:
1, Stage led screen: easy to hanging install and fast assembly for the background video panel ,suitable to stage setting .
2, Conference & Board Rooms led screen : install in Conference & Board Rooms for meeting or stage background.
3. Stadiums & Gymnasiums led screen : install in the Stadiums & Gymnasiums to live sports event, as video wall panel
4. Meeting room & Auditoriums led screen : install with a portable section aluminum structure ,as a mobile led screen .
5. Banquet led screen: install in the banquet hall for music video or events video panel as setting.
6. Airport led screen : install in airport for festival advertisement or special video display .
