SMD2525 P5 Outdoor Led Display

Shenzhen Xing Guang Cai Technology Co., Limited
Contact Now

SMD2525 P5 Outdoor Led Display

  • 1
  • 2

Brand Name : XGC

Model Number : P5

Certification : CE ,FCC, ROSH CCC

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : USD3800--USD4500 /pcs

Payment Terms : T/T、, Western Union、L/C、, D/A、, D/P, MoneyGram

Supply Ability : 5000㎡ per month.

Delivery Time : 7-15 days

Packaging Details : Plywood case、flight case

Usage : Outdoor

Pixels : 5mm

Screen dimension : Can be customized

Tube chip color : Full Color

Display function : Video,picture,Outdoor,text,graphics

Warranty : 2 Years

Brightness : 6500CD

Led chip : Epistar

Module size : 320*160mm

Life span : 100000hours

Application : Live Events Led Display,commercail

Product name : Led Video Display Panel

Color : Full-color,RGB,1R1G1B

Pixel density : 40000dots /㎡

Weight : 42kg/㎡

Power supply : 110~220V

Refresh rate : 1920Hz,1920/3840

Viewing angle : W140°,H 140°

Contact Now

Double Sides TV LED Player SMD2525 6500CD P5 Outdoor Street Standing Poster LED Display

1. High Stability: Use high quality components and parts and sophisticated processing technique. Products with stable quality , high reliability and long life span.

2. Rich Content: It can show text, chart, graphic, cartoon ,video and so on.

3. High Refresh Rate: Adopt MBI5124 drive IC (Standard Configuration). The refresh rate can be as high as 1920Hz, which can eliminate ghost effect effectively. For rental led display, we prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate can achieve 3840Hz. The graphics are stable with no wave or black screen. Video pictures are fine and smooth with clear edges. It has good dynamic expressiveness which can show the graphic information exactly/vividly and brings you perfect visual enjoyment.

4. High Resolution: Adopt high pixel density display unit with micro pitch, which can joint the boards together in any direction, any size and any shape to easily produce FHD, 4k big screen.

5. Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.

6. Super-wide view angle: 140°view angle and consistent display effect at multi direction , no mosaic phenomenon.

7. Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.

8. LED Single-lamp maintenance with low cost.

9. Environmental-friendly and energy-saving.

Technical Parameter for P5 OUTDOOR DOUBLE SIDES LED DISPLAY

Module Specifications
1 Pixel Pitch 5mm

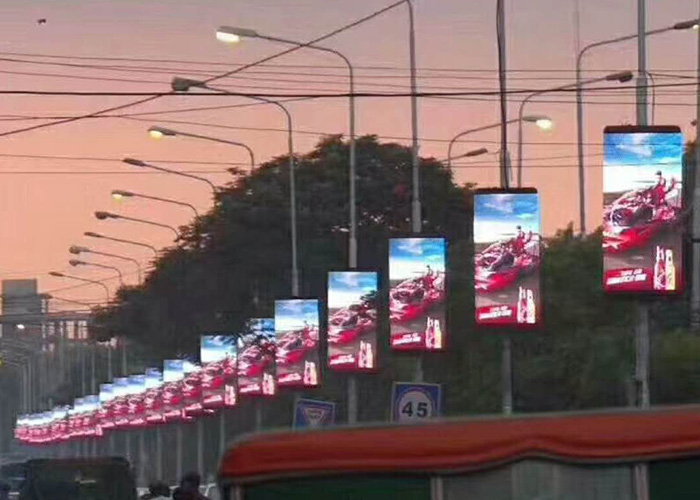

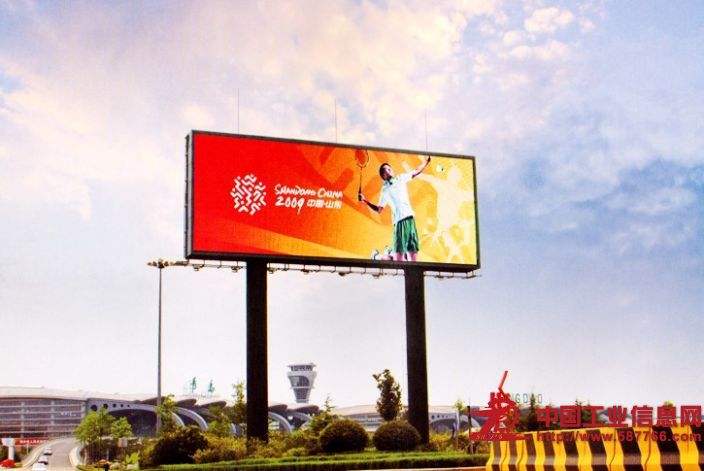

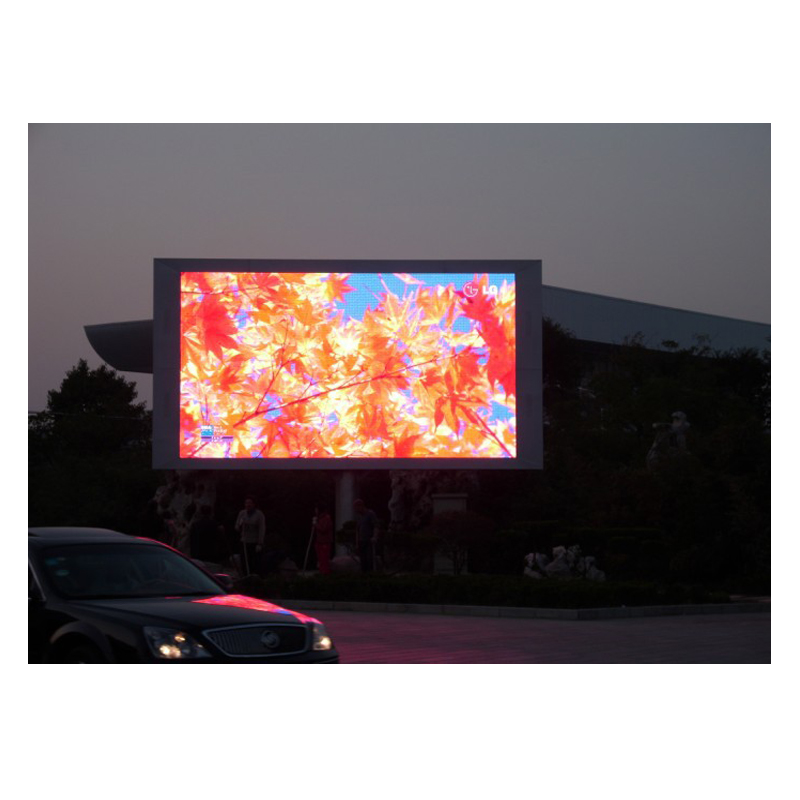

Outdoor LED screen project cases:

SMD2525 P5 Outdoor Led Display

 SMD2525 P5 Outdoor Led DisplaySMD2525 P5 Outdoor Led Display
2 Led Type SMD2525
3 Pixel configuration 1R1G1B
4 Module Size 320x160mm
5 Module Resolution 64x32pixels
6 LED Chip Epistar
7 LED brand Hongsheng/Forest/ Kinglight/Nationstar/
Cabinet Specification
1 Cabinet display Size 1280x1920mm
2 Cabinet size 1340*2450mm
3 Cabinet Resolution 256x384 pixels/side
4 Module Qty. 4x12pcs/side
5 Power Supply 5V40A 200W/ 5V60A 300W
6 Cabinet Materials iron cabinet
Screen Parameters
1 Pixel density 40000dots/㎡
2 Screen Resolution according to screen size
3 Cabinet Qty. according to screen size
4 Brightness ≥6500 CD/sqm
5 Refresh rate ≥1920Hz/s
6 Scanning Mode 1/8 scan
7 Viewing Angle H:140°;V:140°
8 Viewing Distance ≥5m
9 Gray Level 16 Bit
10 Power Input AC110~240V
11 Power Comsuption Max: 1000W/㎡ Average:300W/㎡
12 MTBF--hours >10,000 hours
13 Life--hours ≥100,000 hours
14 IP Grade IP65/IP54
15 Operating Temperature -35℃~ 65℃
16 Storage Humidity 10℃~90℃RH
17 Control Syetem Novastar
18 Operating System Windows98/me/2000 /NT/XP
19 Power Supply 5V40A 200W/5V60A 300W
20 Maintance Access Back service/Front service
21 Light sensor Novastar
22 Control mode computer /USB/WIFI/4G

HS code: 8528591090

Regular plywood package.

SMD2525 P5 Outdoor Led Display

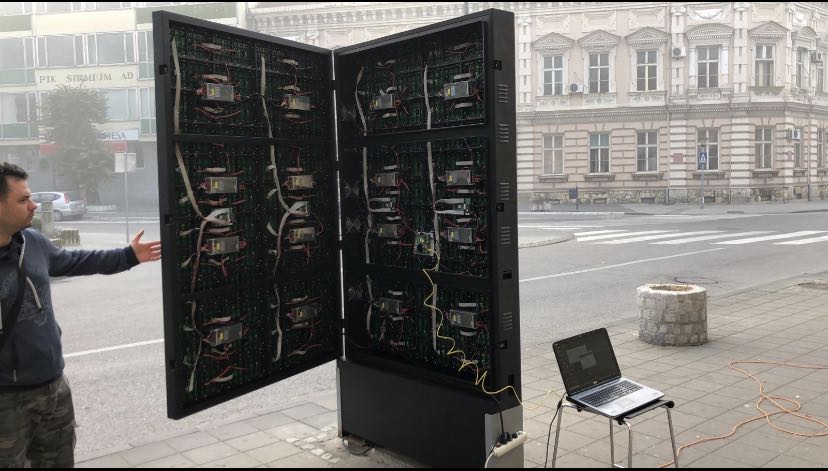

Product inside viewing:(Controller is installed inside cabinet,simple installation mode)

SMD2525 P5 Outdoor Led Display

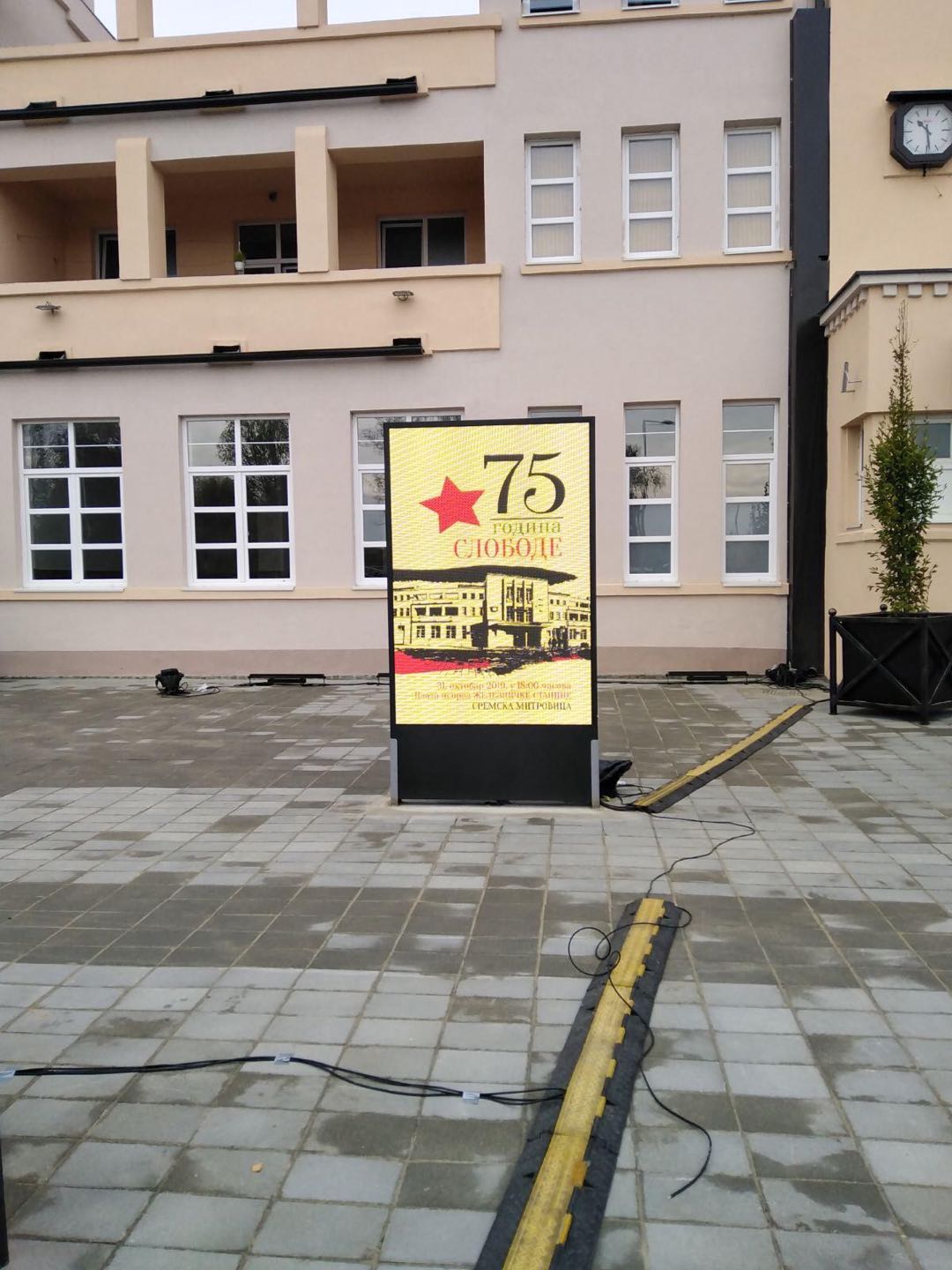

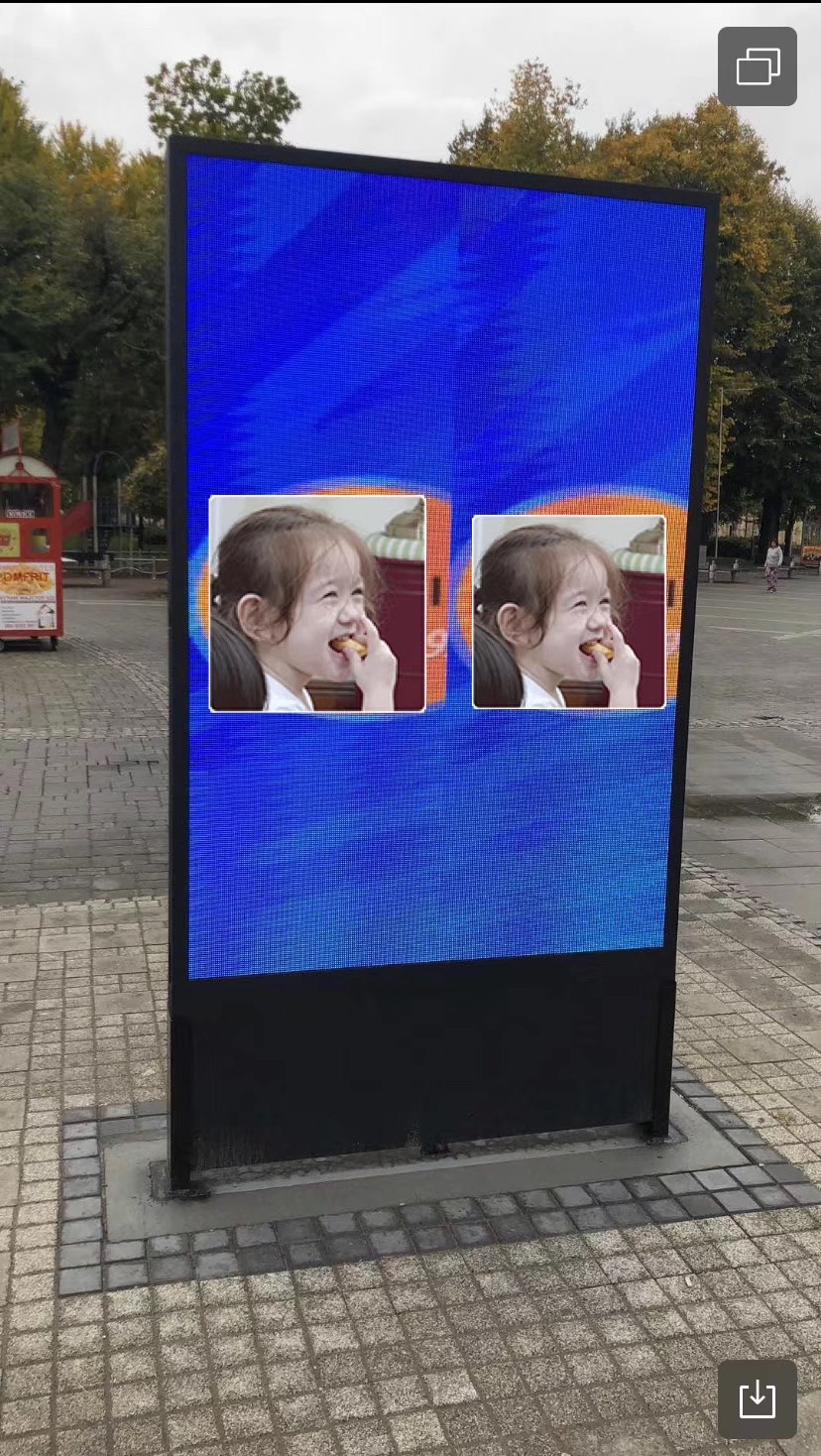

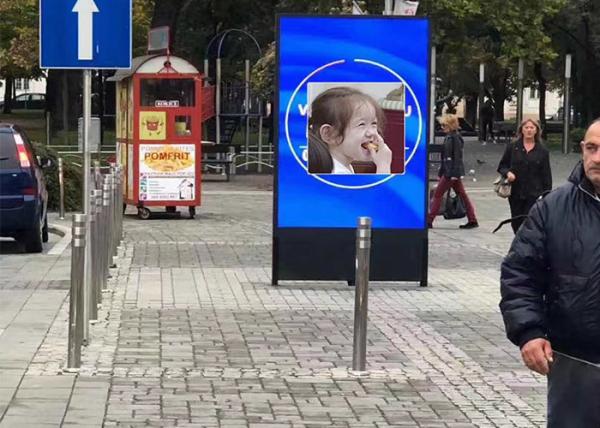

Case in Serbia

SMD2525 P5 Outdoor Led Display

SMD2525 P5 Outdoor Led Display

Remote control mode(computer,smartphone,iPad)

SMD2525 P5 Outdoor Led Display

Q1,How to arrange payment?

Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable

Q2,What is our warranty?

Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well

Q3,How to be our distributor?

To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time

Q4, How to maintence led screen?

In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules

Q5,How to select led type?

In usually,

For indoor stage will be select indoor die casting P2.5 P2.976 P3 P3.91 P4.81 P4 P5 P6 P7.62 P10

For outdoor stage will be select P4.81 P6.25 P6 P8 P10

For fixed installed led screen, can select P2 P2.5 P2.976 P3 P3.91 P4.81 P4 P5 P6 P7.62 P10

For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

if directly to sun,can select outdoor SMD P8, DIP P10

For big size led screen can select DIP P10 P12 P16 or P20

Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen

Let us come together to create a lasting relationship,and let us help you in this business well

If you want more information,welcome to contact us,thanks
